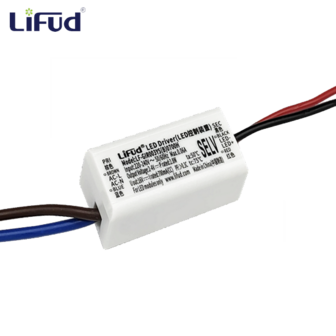

Lifud driver | Constant Current | Compact Non Dimmable | Fixed Current | Slim | 1W, 2W, 3W | 220-240V | 2-4V, 5V-10V | Low PF
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Low PF (Build-in) |
| Model |
LF-GIR003YS(B) |
| Max Output |
Options: 1W, 2W, 3W |
| Dim. Functions |
Non Dimmable |
| Input Voltage |
220- 240V |
| Output Voltage |
See below |
| Output Current |
1W: 300mA (2-4V) |
| |
1W: 350mA (2-4V) |
| |
2W: 600mA (2-4V) |
| |
3W: 700mA (2-4V) |
| |
3W: 300mA (5-10V) |
| Efficiency+ PF (Typical) |
1W: 300mA: 56%, PF: 0,35 (230Vac) |
| |
1W: 350mA: 56%, PF: 0,37 (230Vac) |
| |
2W: 600mA: 64%, PF: 0,41 (230Vac) |
| |
3W: 700mA: 65%, PF: 0,43 (230Vac) |
| |
3W: 300mA: 70%, PF: 0,40 (230Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
38.7*19.7*16.5 mm |
| Certificates |
CB, CE, RCM, CCC, SAA |
| Warranty |
5 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
